This feature is only available when JeppView 3 is installed on the same machine.
The Filter Settings dialog box allows more detailed filtering of airports and terminal charts listed in the Airport List. This section reviews how to filter airports within the Airport List. If you would like additional information about filtering terminal charts, see Terminal Chart Filters.
To set criteria for what airports appear in the Airport List:
Click Filter in the Airport List window and select Airport Filter Settings.
In the Filter Settings dialog box, use any options on the following tabs to set specific airport filtering criteria:
Airports — Filters airports in the Airport List based on the following:
Runway length
Fuel and services available
Public, private or military airports
Visible terminal charts (due to terminal chart filtering)
Precision approaches
Terminal chart changes
Geographic Area — Filters airports in the Airport List based on geographic location. These filters can also be managed in the Enroute Charts view. The following are some geographic filters:
Location (airport, city, state, country)
Rectangle or Circle
Route

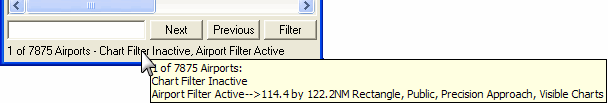

Before working with filters, you should know which airport filters are currently active in the Airport List. A filter status appears at the bottom of the Airport List window, indicating how many airports are in your coverage area. The Airport List status also indicates whether an airport or terminal chart filter is active or inactive, and how many airports are displayed in the list. To view details about the airport filter, point to the text and view the ToolTip. The ToolTip displays the filter details.
| NOTE | If a ToolTip does not display, ensure that the Enable ToolTips on Dialog Boxes check box is selected in Tools > Options. |
Use one of the following techniques to remove filters set within the Filter Settings dialog box:
Click Filter in the Airport List window and select Enable Airport Filter to remove the associated check mark. All airport filters set within the Airports tab and Geographic Area tab of the Filter Settings dialog box become inactive. To reactivate the filters, click Filter and select Enable Airport Filter once more.
Click Filter in the Airport List window and select Airport Filter Settings. In the Filter Settings dialog box, do either of the following:
Click Reset this page to remove the airport filters for the respective tab only, and then click OK.
Click Reset all pages to remove all airport filters, and then click OK.
Whenever you change the filter settings, Jeppesen recommends that you verify the filter status.
